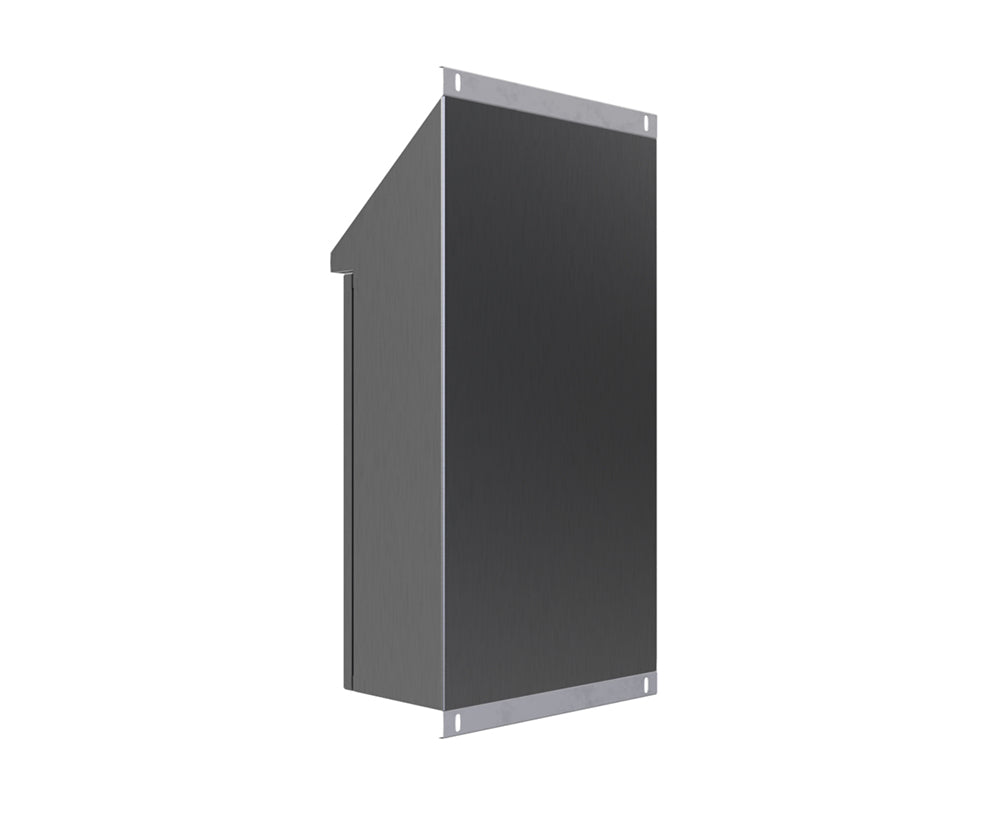

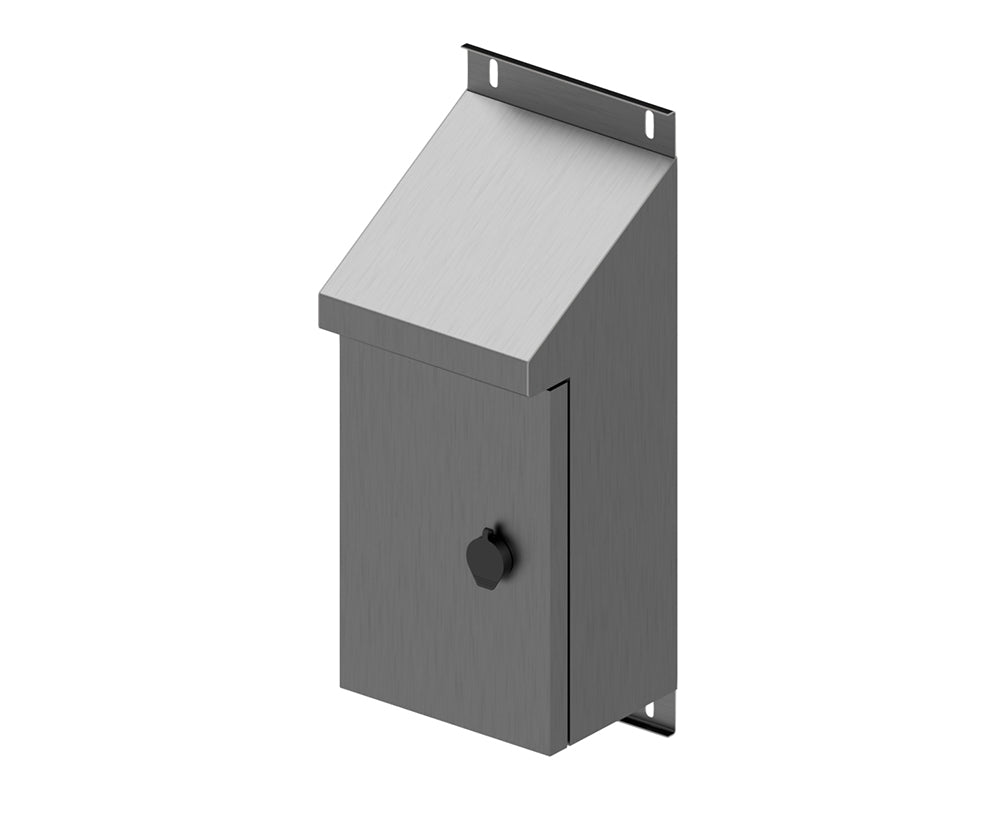

30Deg Sloping Roof 316L Stainless Steel Enclosure 400Hx300Wx150D - 1.5mm

SKU: SS-SR-400x300x150

Made from 316L Stainless Steel, N4 Finish, IP66 Rated and IK10 Tested Enclosure. Top and Bottom wall mounting Flange. Includes - White Mild steel gear tray, Earth wire, 1 x 2-bit Stainless Steel Lock and key. Door left hand hinged default.

Availability : In Stock
Regular price
$575.00 Excl. GST
Sale price
$575.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

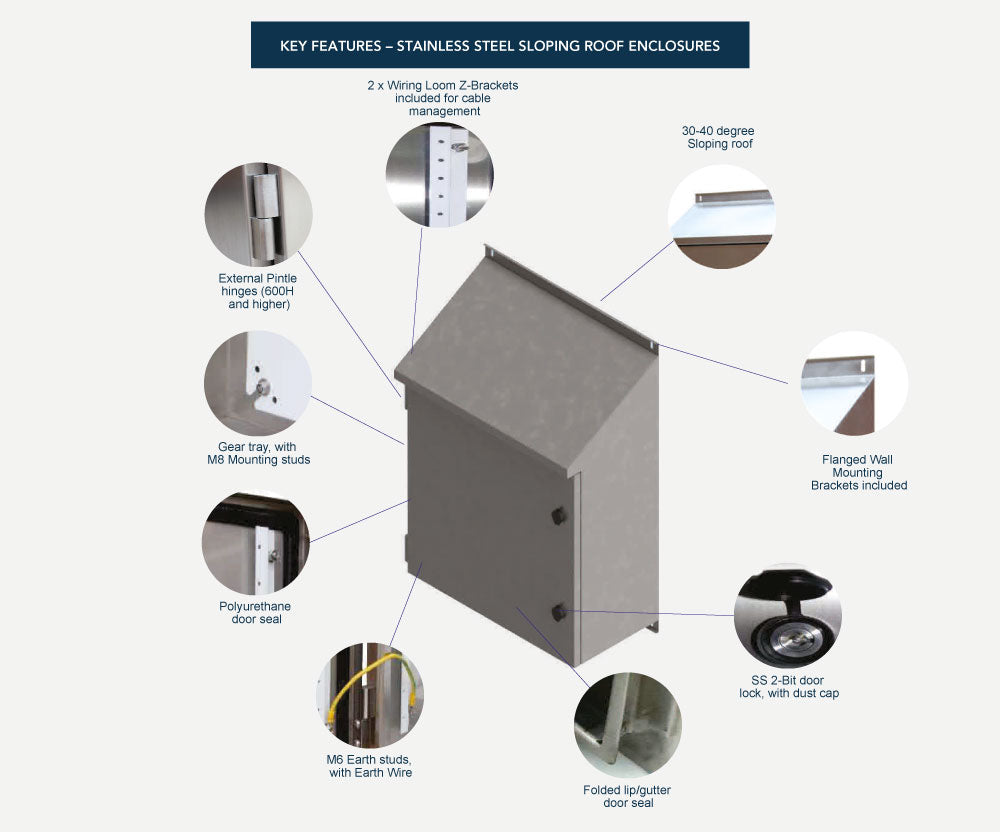

Specifications and Features

AE Stainless’ range of Sloped Roof Enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect equipment in extreme conditions - including corrosive marine. They are also designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.

  • Made from 1.5mm 316 stainless steel
  • Height is door height
  • Top and bottom flange to easily mount against a wall
  • Fully welded construction - IP66 rating, IK10 Tested
  • Door earthed to cabinet via earth studs
  • Polyurethane door seal

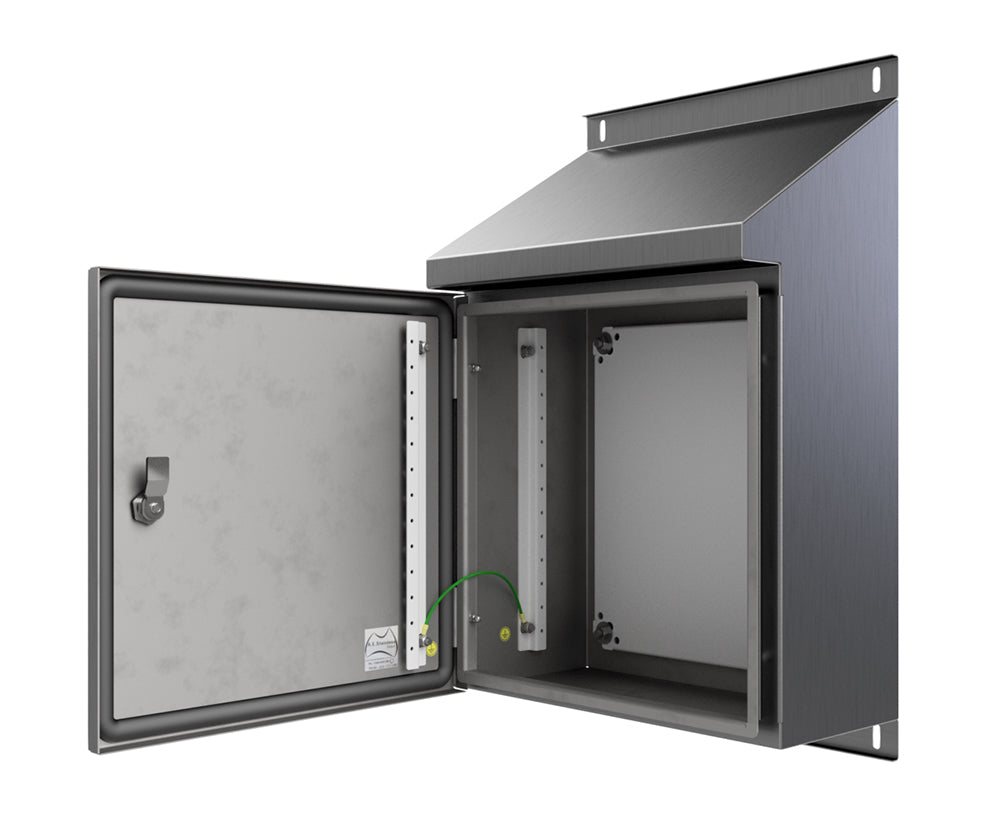

  • 2mm white powder coated galvanised steel gear tray included
  • 2 x Wiring Loom Z-brackets included for cable management across door hinges
  • Folded lip/gutter to ensure effective door seal
  • Door fitted with 2-bit stainless steel locks
  • 30 degree sloping roof

Technical Drawing PDF

Or Download DWG File

Download .dwg file
