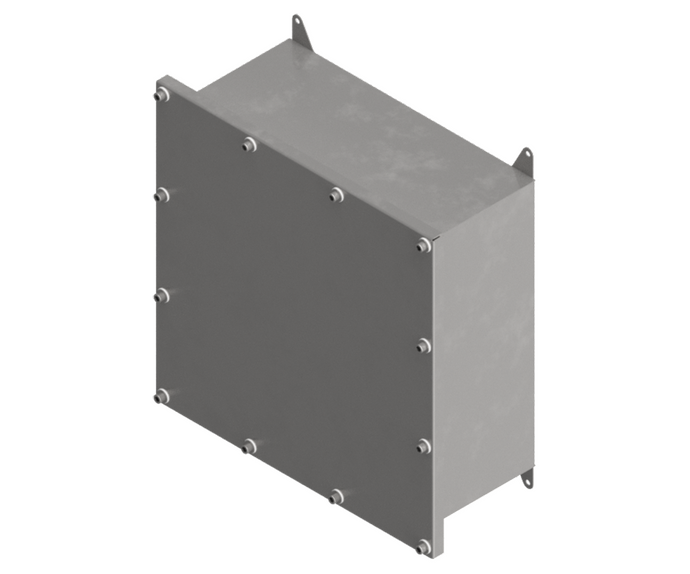

316L Stainless Steel IP67 Enclosure 300Hx300Wx150D - 1.2mm
316L Stainless Steel IP67 Enclosure 300Hx300Wx150D - 1.2mm
316L Stainless Steel IP67 Enclosure 300Hx300Wx150D - 1.2mm
  • Load image into Gallery viewer, 316L Stainless Steel IP67 Enclosure 300Hx300Wx150D - 1.2mm
  • Load image into Gallery viewer, 316L Stainless Steel IP67 Enclosure 300Hx300Wx150D - 1.2mm
  • Load image into Gallery viewer, 316L Stainless Steel IP67 Enclosure 300Hx300Wx150D - 1.2mm

316L Stainless Steel IP67 Enclosure 300Hx300Wx150D - 1.2mm

SKU: SS-TB67-300x300x150-D

Made from 316L Stainless Steel, N4 Finish, IP67 Rated and IK10 Tested Terminal box. Supplied with 2mm galvanised gear tray. Bolted lid to ensure IP67.

Availability : Out of Stock - Please email to confirm ETA
Regular price
$320.00 Excl. GST
Sale price
$320.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

AE Stainless’ range of stainless steel IP67 Terminal Boxes are designed for extreme wet conditions, including submersion. These enclosures are extensively used in marine, but also in the machinery and trucking industry.

  • Made from 1.2mm 316 stainless steel
  • Fully welded construction - IP67 rating, IK10 Tested
  • Polyurethane door seal
  • Lid fitted with multiple stainless steel sealing fasting screws
  • 2mm galvanised steel gear tray included (on the two large sizes)
  • Internally welded points for provision of a DIN rail or a mounting plate (on the three smaller sizes)
  • Folded lip/gutter to ensure effective door seal
  • Welded mounting flanges for easy mounting
  • All screws are outside of seal area for superior water proofing

Technical Drawing PDF

Or Download DWG File

Download .dwg file
